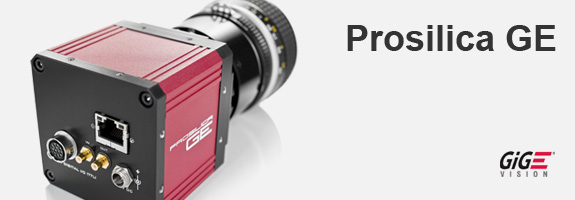

Compact, high performance CCD machine vision cameras with GigE Vision
The Prosilica GE cameras are very compact, high-performance machine vision cameras with Gigabit Ethernet interface (GigE Vision®).
The GigE interface allows for very fast frame rates and long cable lengths.
- compact size
- VGA to 16 Megapixel resolution
- Fast frame rates to 205 fps
- Kodak KAI CCD sensors
- Modular options available
Specification
| Prosilica GE |
680 |
1050 |
1650 |
1660 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
640 x 480 |
1024 x 1024 |
1600 x 1200 |
1600 x 1200 |
| Sensor |
Kodak KAI-0340 |
Kodak KAI-01050 |
Kodak KAI-2020 |
Kodak KAI-02050 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 1/3 |
Type 1/2 |
Type 1 |
Type 2/3 |
| Cell size |
7.4 µm |
5.5 µm |
7.4 µm |
5.5 µm |
| Lens mount |
C |
| Max frame rate at full resolution |
205 fps |
59 fps |
32 fps |
34 fps |
| A/D |
12 bit |
| On-board FIFO |
32 MB |
|
Output |
| Bit depth |
8/12 bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| TTL I/Os |
1 input, 3 outputs (with galvanic isolation) |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Power requirements (DC) |
5V - 24V |
| Power consumption (12 V) |
4.5 W |
5 W |
5 W |
5 W |
| Mass |
169 g |
178 g |
169 g |
178 g |
Body Dimensions
(L x W x H in mm) |
80x51x39 including connectors, w/o tripod and lens |
| Regulations |
CE, FCC, Class A, RoHS |
| Prosilica GE |
1900 |
1910 |
2040 |
4000 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
1920 x 1080 |
1920 x 1080 |
2040 x 2048 |
4008 x 2672 |
| Sensor |
Kodak KAI-2093 |
Kodak KAI-02150 |
Kodak KAI-04022 |
Kodak KAI-11002 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 1 |
Type 2/3 |
Type 1.2 |
Type 35 mm |
| Cell size |
7.4 µm |
5.5 µm |
7.4 µm |
9 µm |
| Lens mount |
C |
C |
C/F |
F |
| Max frame rate at full resolution |
30 fps |
32 fps |
15 fps |
5 fps |
| A/D |
12 bit |
| On-board FIFO |
32 MB |
|
Output |
| Bit depth |
8/12 bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
YUV411, YUV422, YUV444 |
YUV411, YUV422, YUV444 |
n/a |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
RGB24, BGR24, RGBA24, BGRA24 |
RGB24, BGR24, RGBA24, BGRA24 |
n/a |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| TTL I/Os |
1 input, 3 outputs (with galvanic isolation) |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Power requirements (DC) |
5V - 24V |
| Power consumption (12 V) |
5 W |
5 W |
5.5 W |
6 W |
| Mass |
169 g |
178 g |
169 g |
402 g |
Body Dimensions
(L x W x H in mm) |
80x51x39 including connectors, w/o tripod and lens |
80x51x39 including connectors, w/o tripod and lens |
80x51x39 including connectors, w/o tripod and lens |
110x66x66 including connectors, w/o tripod and lens |
| Regulations |
CE, FCC, Class A, RoHS |
| Prosilica GE |
4900 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
4872 x 3248 |
| Sensor |
Kodak KAI-16000 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 35 mm |
| Cell size |
7.4 µm |
| Lens mount |
F |
| Max frame rate at full resolution |
3 fps |
| A/D |
12 bit |
| On-board FIFO |
32 MB |
|
Output |
| Bit depth |
8/12 bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
n/a |
| Color modes RGB |
n/a |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| TTL I/Os |
1 input, 3 outputs (with galvanic isolation) |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Power requirements (DC) |
5V - 24V |
| Power consumption (12 V) |
6 W |
| Mass |
391g (402g for GE4000C) |
Body Dimensions
(L x W x H in mm) |
110x66x66 including connectors, w/o tripod and lens |
| Regulations |
CE, FCC, Class A, RoHS |
|
